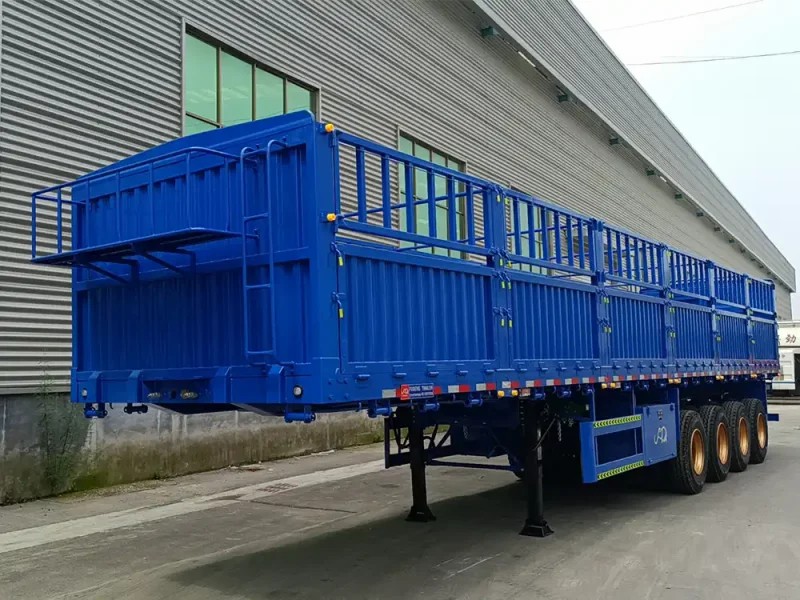

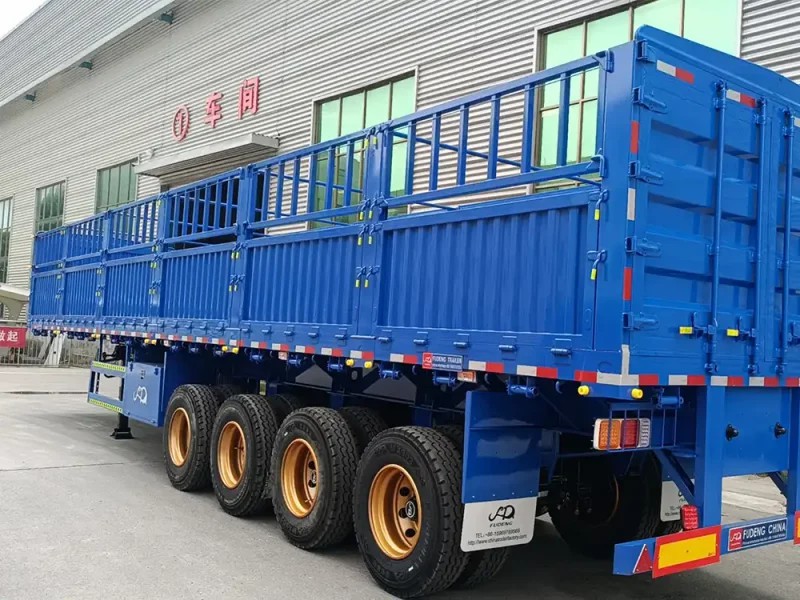

4 Axles Bulk Cargo Fence Trailer
Dimension 12.5m×2.75m×3.2m(customized) Payload 80T Fence height 1m 0.6m/Customized Twistlock 12 units locks for
Contact Now
Product details
| Dimension | 12.5m×2.75m×3.2m(customized) |
| Payload | 80T |
| Fence height | 1m+0.6m/Customized |
| Twistlock | 12 units locks for 20ft and 40ft container |
| Main beam | Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. |
| Frame Floor | The Thickness is 4mm pattern |
| Axle | 4 axles, 16T FD brand heavy duty |
| Landing Gear | FUWA brand 28T lifting capacity with two speed |
| King Pin | 2.00 or 3.5 inch bolt-in king pin |
| Suspension | Mechanical/Air suspension(customized) |
| Leaf Spring | 90mm(W)*16mm(T)*10 Layer |
| Pneumatic Braking System | Dual line pneumatic brake system,T30/30+T30 air chamber ,40L air tanks,Emergency relay valve |
| Tire | 12R22.5 *12pcs(optional) |
| Accessories | Two standard tool box |
| Color | White, Red, Yellow, Blue(Optional) |
